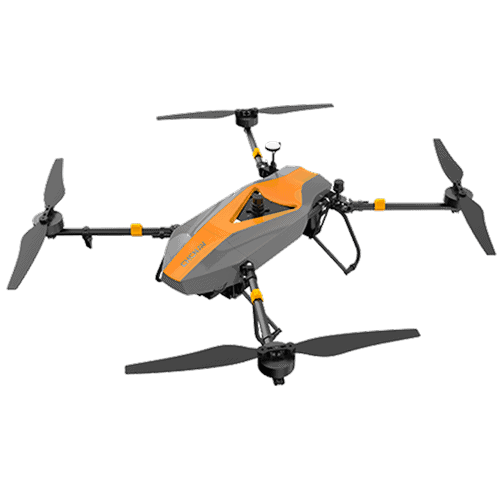

CHCNAV BB4
The BB4 is a high-end unmanned aircraft system resulting from an alliance between the two industry leaders in their respective segments. Its scientific design and highly integrated production technology come from CHCNAV – a global manufacturer specialized in efficient geospatial measurement technologies – and its fully automated flight control system from DJI, the pioneer in the manufacturing of commercial UAVs.
Spesifikasi
Type:
Quadcopter with 4 propellers
Payload & Weight
Max Takeoff Weight: 29.0 kg (with battery)
Max payload: 7.1 kg
Flight System
Flight control system: Dual-frequency GNSS navigation, dual redundancy sensor design, fully-automatic work mode
Max Speed: 14 m/s
Max Flight Altitude: 5000 m
Max Flight Time: 55 min with 1 kg payload, 40 min with 5 kg payload
Battery
6000 mAh LiPo 2S
Supported Payload:
RGB Camera: CHCNAV AS-C420, CHC AS-C240, (can be customed)
LiDAR: CHCNAV AU series, CHC AS series (3d party LiDAR < 7 kg weight)
