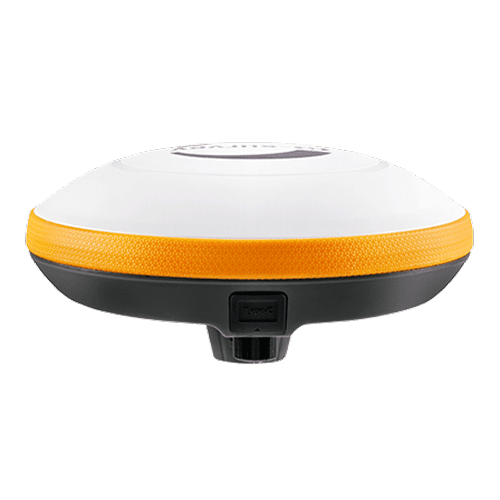

GNSS Receiver E-Survey E300 Pro
The eSurvey E300 Pro is a fully functional GNSS receiver with an extremely compact design by eSurvey GNSS. With its high-performance GNSS board, it can track all present constellations and satellites. The GNSS, Wi-Fi, Bluetooth, and GSM four-in-one antenna, stable data transmission, RTK Aid, and IMU function, make it suitable for all surveying applications.
Spesifikasi
Channels: 1408 channels
GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS, and L-Band
IMU
up to 60°
Accuracy
- Static/Fast Static: H: 2.5 mm + 0.5 ppm | V: 5 mm + 0.5 ppm*
- Precision Static H: 2.5 mm + 0.1 ppm | V: 3.5 mm + 0.4 ppm
- RTK H: 8 mm + 1 ppm | V: 15 mm + 1 ppm
- SBAS: H: 0.3 m RMS | V: 0.6 m RMS
Internal Radios
410 – 470 MHz, 902.4 – 928 MHz
Protocol: TrimTalk 450s, PCC-GMSK, PCC-4FSK, Satel, Satel_ADL, HITARGET, TrimTalk HZSZ, South, TrimMark III, GEOTALK, GEOMARK, PCCFST, PCCFST_ADL, 900M Hopping
Range
3 – 5 km typically
Environmental
IP67
