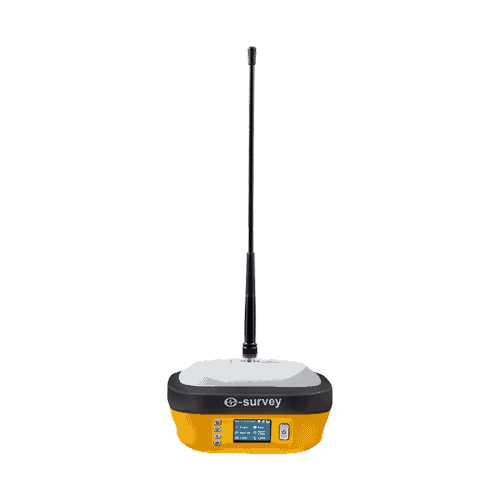

GNSS Receiver E-Survey E800
The E800 is a high-performance GNSS receiver that provides an easy-to-use solution for survey professionals who need to collect highly accurate data in a wide range of applications. The durable IP67 design makes it possible to work in extreme environments. The colorful touchscreen is convenient for quick configurations.
Spesifikasi
Channel
1408 channels
GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS, L-Band
IMU
up to 60°
Accuracy
Static/Fast Static: H: 2.5 mm + 0.5 ppm | V: 5 mm + 0.5 ppm*
Precision Static H: 2.5 mm + 0.1 ppm | V: 3.5 mm + 0.4 ppm
RTK H: 8 mm + 1 ppm | V: 15 mm + 1 ppm
SBAS: H: 0.3 m RMS | V: 0.6 m RMS
Internal Radio
5W, 410 – 470 MHz
Protocol: TrimTalk 450s, PCC-GMSK, PCC-4FSK, Satel, Satel_ADL, HITARGET, TrimTalk HZSZ, South, TrimMark III, GEOTALK, GEOMARK, PCCFST, PCCFST_ADL
Range
8 – 10 km typically
Environmental
IP67
