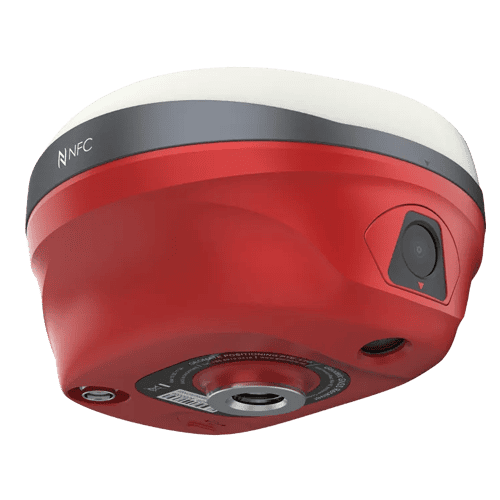

GNSS Receiver Giogo Xirius X1-i
Xirius X1-i Pocket Visual GNSS Receiver is the latest cutting-edge GNSS surveying receiver designed in Singapore, featured advanced GNSS, IMU, and dual-camera technology. The X1-i boasts an impressive 1608-channel GNSS SoC module, ensuring precise positioning even in challenging environments. Equipped with state-of-the-art dual-camera technology, the X1-i harnesses the power of high-quality dual cameras and video photogrammetry while maintaining its compact and portable design.
Spesifikasi
Positioning
Channel: 1608 channels
IMU: 0-60°
Post-processing Static H: 2.5 mm + 0.5 ppm | V: 5 mm + 0.5 ppm
RTK: H: 8 mm + 1 ppm | V: 15 mm + 1 ppm
PPK: H: 3 mm + 1 ppm | V: 5 mm + 1 ppm
Visual Survey: Typical 2~4 cm, range 2~15 m
Visual Stakeout H: 8 mm + 1 ppm RMS | V: 15 mm + 1 ppm RMS
Sensors
Camera: Dual
Physical
IP68 (IEC 60529)
Connectivity
Wireless : Bluetooth, Wi-Fi, NFC
Modem : 410-470 MHz, Rx/Tx | 0.5W / 1W
