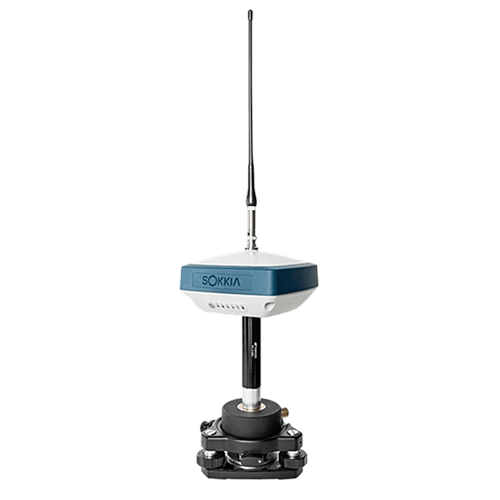

Sokkia GRX3
Exceptional Versatility in a compact design.
The Sokkia GRX3 is smaller, lighter, and packed with the most advanced GNSS technology in a design built to withstand the harshest field environments. All signals, all satellites and all constellations — in a compact, rugged design, with an integrated IMU and eCompass. Incorporates a revolutionary 9-axis inertial measurement unit (IMU) and ultra-compact eCompass, which compensate for mis-leveling up to 15 degrees.
Spesifikasi
Channels
226 (patented Universal Tracking Channels technology)
IMU
up to 15°
Accuracy
- Static/Fast Static: H: 3 mm + 0.4 ppm | V: 5 mm + 0.5 ppm*
- Precision Static H: 3.0 mm + 0.1 ppm | V: 3.5 mm + 0.4 ppm
- RTK H: 5 mm + 0.5 ppm | V: 10 mm + 0.8 ppm
- RTK, Tilt Compensated: H: 1.3 mm/°Tilt; Tilt ≤ 10° | V: 1.8 mm/°Tilt; Tilt > 10°
Internal Radios
425-470 MHz UHF radio;
Max Transmit Power
1W
Range
5-7 km typical; 15 km in optimal conditions
Environmental
IP67
