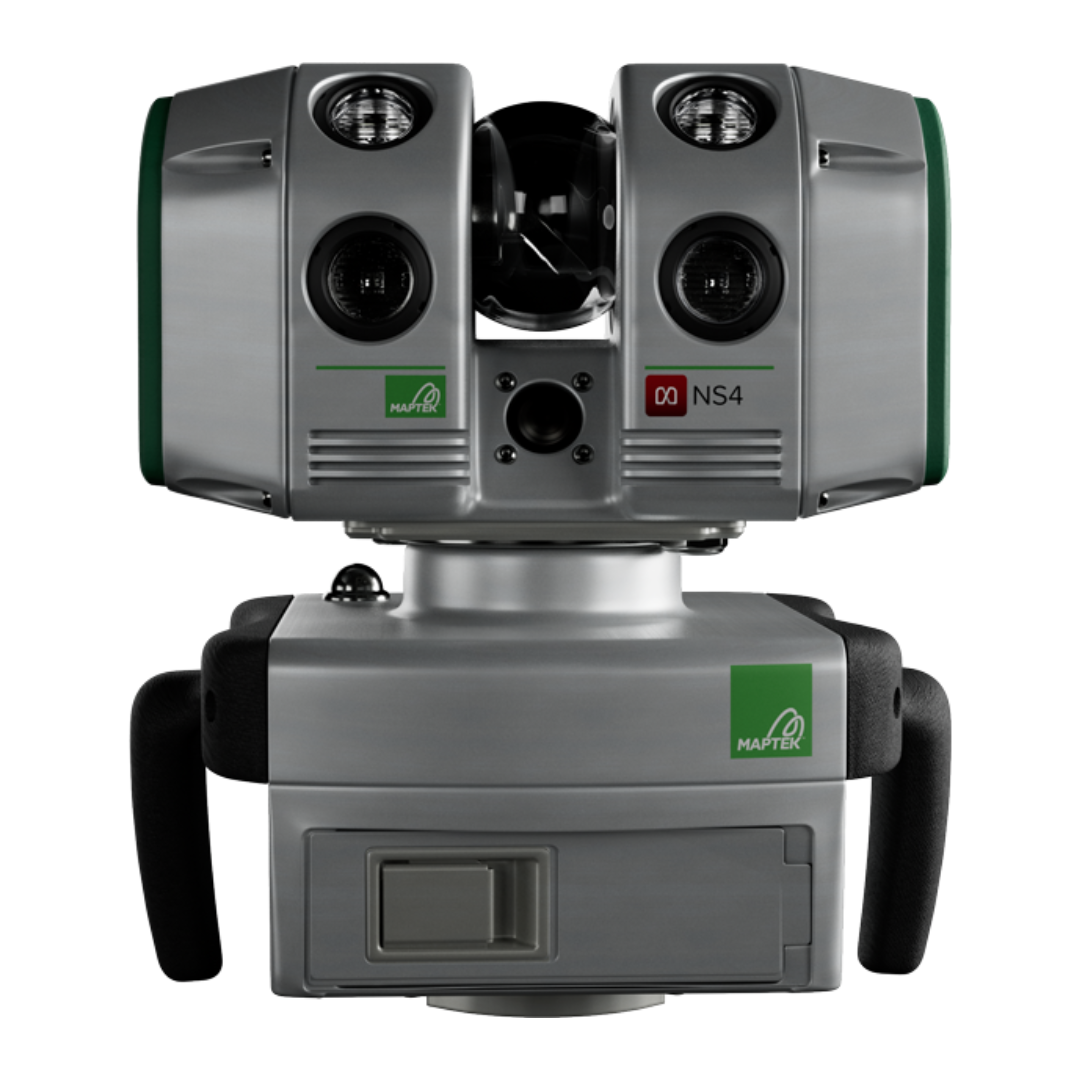

Maptek Laser Scanner NS4
Compact, Connected Survey-Grade Scanning
Portable laser scanner for underground, surface, tunnelling, and civil survey workflows. NS4 combines accurate long-range scanning, panoramic imagery, onboard illumination, and mobile-device operation in a lightweight system.
- Buil for collaborative surface, underground and civil workflows
- Use for fast deployment and flexible capture
- Delivers connected outputs for review and analysis
Range: 1,000 m
Weight: 4.3 kg
Accuracy: 4 mm
Repeatability: ±4 mm
Vertical scanning extent: 260°
Scanning range (horizontal): 360°
Data acquisition rate: 100 · 200 · 400 · 800 kHz
Capabilities
- Panoramic camera support
- Vehicle mounted operation
- On board illumination to 4000 lumens
Features, Benefits, and Applications
Key Features
- Suited for underground, surface, tunnelling and civil survey applications
- Long-range measurement with survey-grade data capture
- High-resolution imagery and positional tracking for richer field context
- Integrates with Maptek workflows for review, modelling and analysis
- Supports more connected delivery of field data across teams
Benefits
- Compact and portable for efficient movement between scanning locations
- Wide 360 × 260° acquisition field of view for faster capture in complex environments
- Built-in LED illumination for underground, tunnelling and low-light workflows
- Mobile-device operation for more flexible field control
- Connected workflows that support faster handoff to office teams
Common Applications
- Underground stopes and drives
- Internal and external stockpile volumes
- Geological mapping
- Geotechnical and kinematic analysis
- Stability monitoring and rockfall analysis
- Pre- and post-blast analysis
- Open pit, topographic and civil projects
- Tunnelling projects
- BIM and digital twins
- Engineering review and project documentation
- Forensics and monitoring applications
